Paper Towel Dispensers
for paper rolls
with outside unwinding
Brand logo

Art. No. 1423649

ACU 1 E ST SMART

Smart paper roll dispenser with automatic paper cutting for single sheets

Material
  • Stainless steel
Paper type
  • Paper roll, with outer winding, max. roll width 190-210 mm, max. roll diameter 210 mm, core diameter > 36 mm
Lock
  • SanTRAL vandalism-proof lock, plastic
Smart function
Colour
Quantity:
  • Description
  • Documents
  • Technical Drawings
  • Ersatzteile

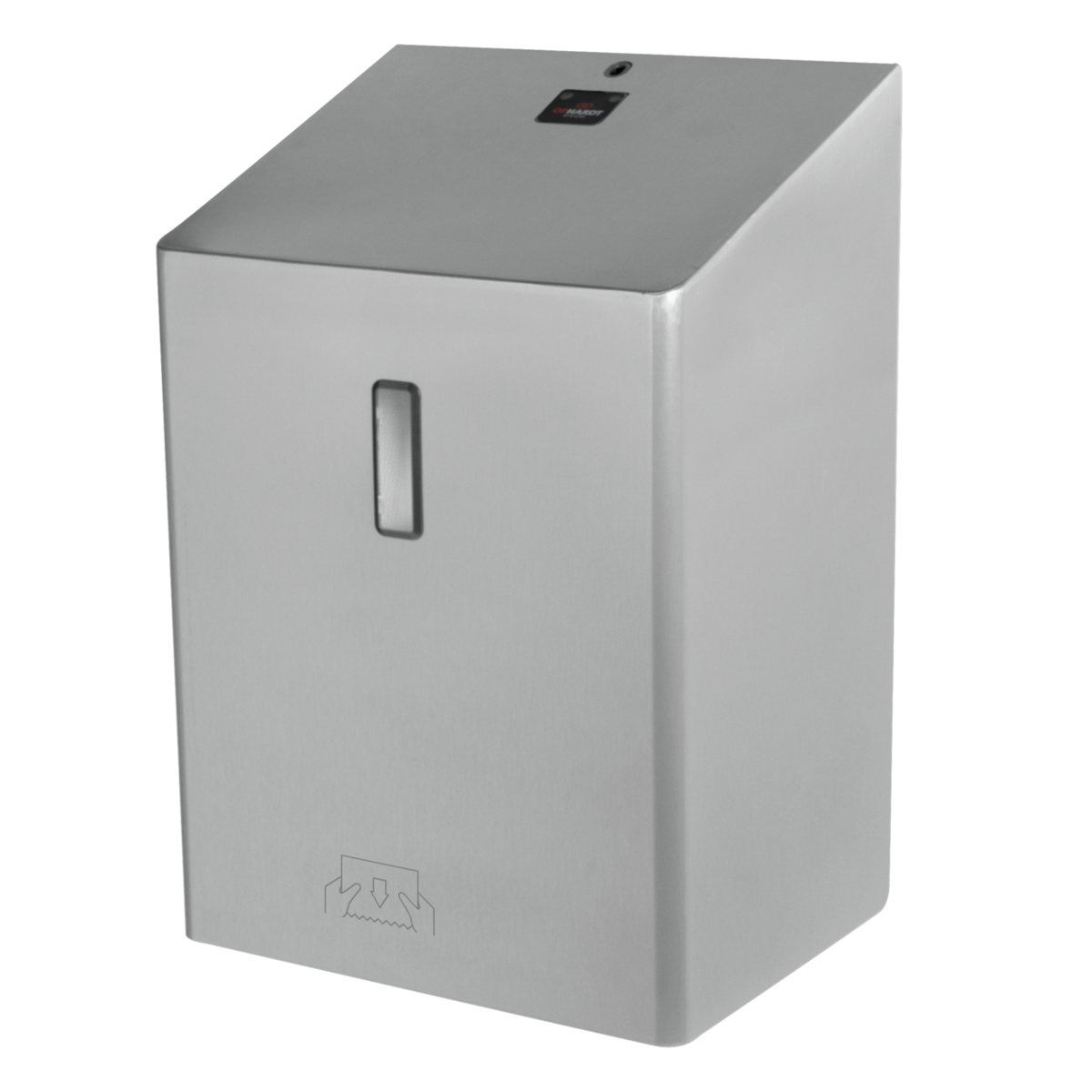

SanTRAL® Plus ACU 1 E Steel Touch (ST) SMART, Autocut dispenser for roll paper towels, brushed stainless steel, with anti-fingerprint-coating, with automatic cutting producing single-sheets when paper pulled downwards, for towel paper rolls without perforation up to 210 mm diameter, max. roll width 190-210 mm, core diameter > 36 mm, with emergency operating lever, lockable, with fill level window, sloped-top housing prevents placement of unwanted objects on dispenser

Data transmission via WiFi with visualization by KANARY or third party platforms, for fully automatic detection of the fill level via sensor technology, integrated LEDs to indicate a critical battery and fill level, over-the-air configuration and firmware update, NFC to read out data and to configure via smartphone.

Brand:SanTRAL® Plus
Quantity / Pallet EU:36
Product Type:Autocut paper roll towel dispenser
Housing:Stainless steel, brushed with Anti-Fingerprint-Coating (Steel Touch)
Material:Stainless steel
Filling volume (sheet):1 Paper roll
Paper type:Paper roll, with outer winding, max. roll width 190-210 mm, max. roll diameter 210 mm, core diameter > 36 mm
Smart function:Smart
Lockable:Yes
Lock:SanTRAL vandalism-proof lock, plastic
Electronic:Board with sensors, WiFi module 802.11 b/g/n (Frequency range: 2400 MHz - 2483.5 MHz; WPA and WPA2) and NFC Chip (Frequency: 13.56 MHz)
Firmware:Updates and configuration “over-the-air” (OTA)
Voltage:6 Volt
Compliancy:RoHS
CE certification:EN 300328 Integration verification WLAN, EN 300330 Integration verification NFC, ETSI EN 62311.2008 EMF, ETSI EN 301489-1 EMV
Software:Dispenser with integrated Smart Module enables automatic fill level detection and connection to KANARY as well as third-party platforms
Mounting:Wall mounting with 4 screws and wall plugs
Cleaning:manual wipe disinfection, not dishwashersafe, not autoclavable
Warranty:5 years
