Art. No. 5400005

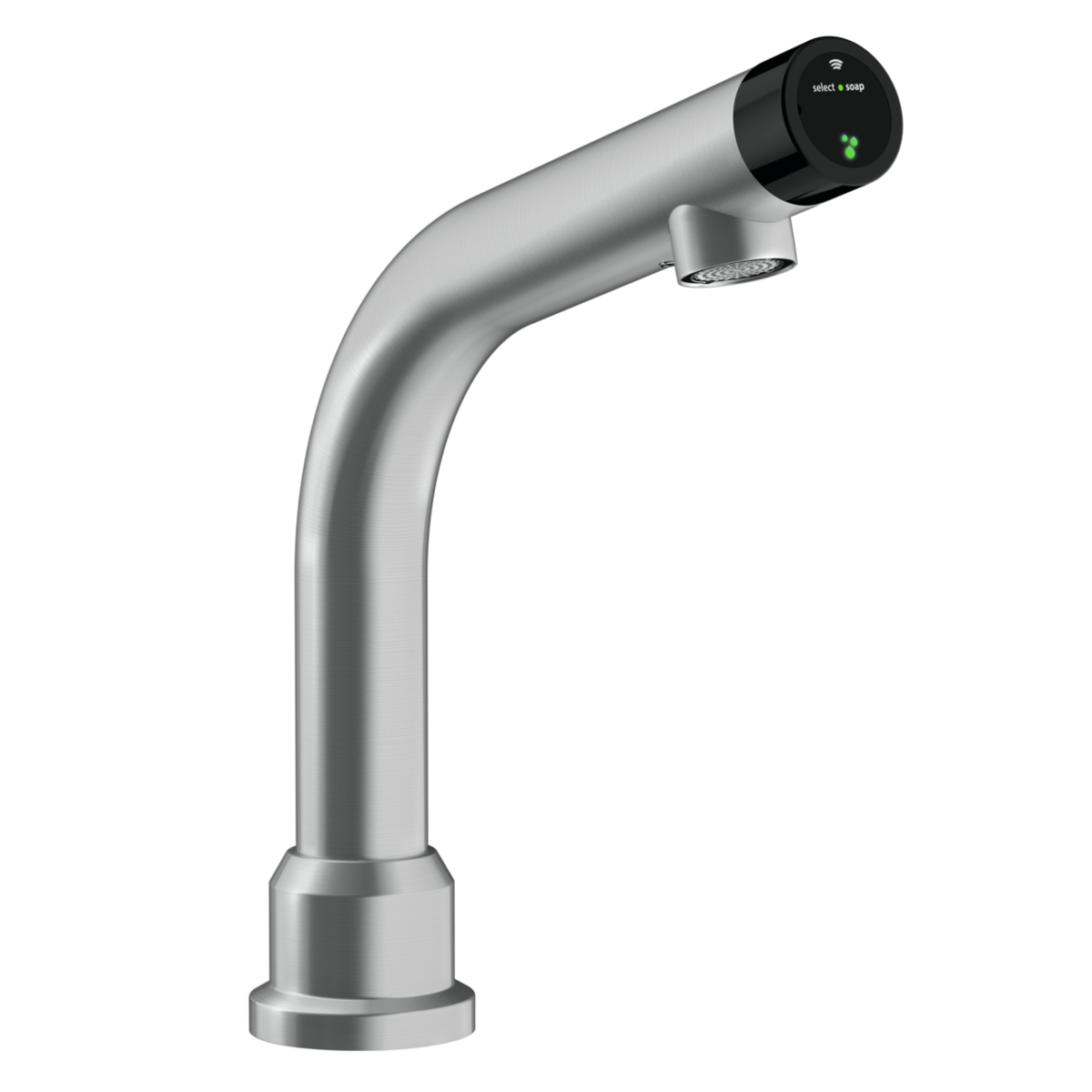

Untouchable MWS Bent

High-quality 2-in-1 faucet system for water and soap

  • Description

    the UNTOUCHABLE, touchless faucet System for water and Soap, sensor-driven 2 in 1 multifunctional bent faucet for countertop integration
    Angle valve connection:G 3/8’’
    Compliancy:DIN EN 55014
    Control unit:Plastic, wall mounting with 4 screws and wall plugs
    Dispenser unit:Aluminium, matte silver anodized, wall mounting with 3 screws and wall plugs
    Duration Hygienic flushing:30 seconds, every 24 hours after the last water withdrawal
    Duration continuous water operation:2 minutes (switches off automatically to prevent overflow)
    Flow Rate:ca. 7-20 liter/minute
    Flow regulator:Neoperl self cleaning
    Housing:Stainless steel 1.4404 (AISI 316L), brushed
    Mounting:for washbasin mounting
    Operating pressure:0.3 - 7 bar (operation only with mains pressure, not with low pressure)
    Power Supply:230V AC to 12V DC/1A power supply unit
    Power consumption:Standby mode: 0.2 Watt; Water mode: 7.2 Watt
    Warranty:2 years
    Water Temperature:max. 70 °C
    Product Sub-Categories:Multifunctional Touchless Faucet system
    Cleaning Method:manual wipe disinfection
    Refill Type:Euro bottle dispenser
    Number of Faucets:1 multifunctional touchless faucet
    Filling volume (ml):1000 ml
    Material:Stainless steel
    Liquid Type:Liquid soaps
    Dosage Volume:Liquid soap: 1.5 ml/stroke
