Art. No. 5400142

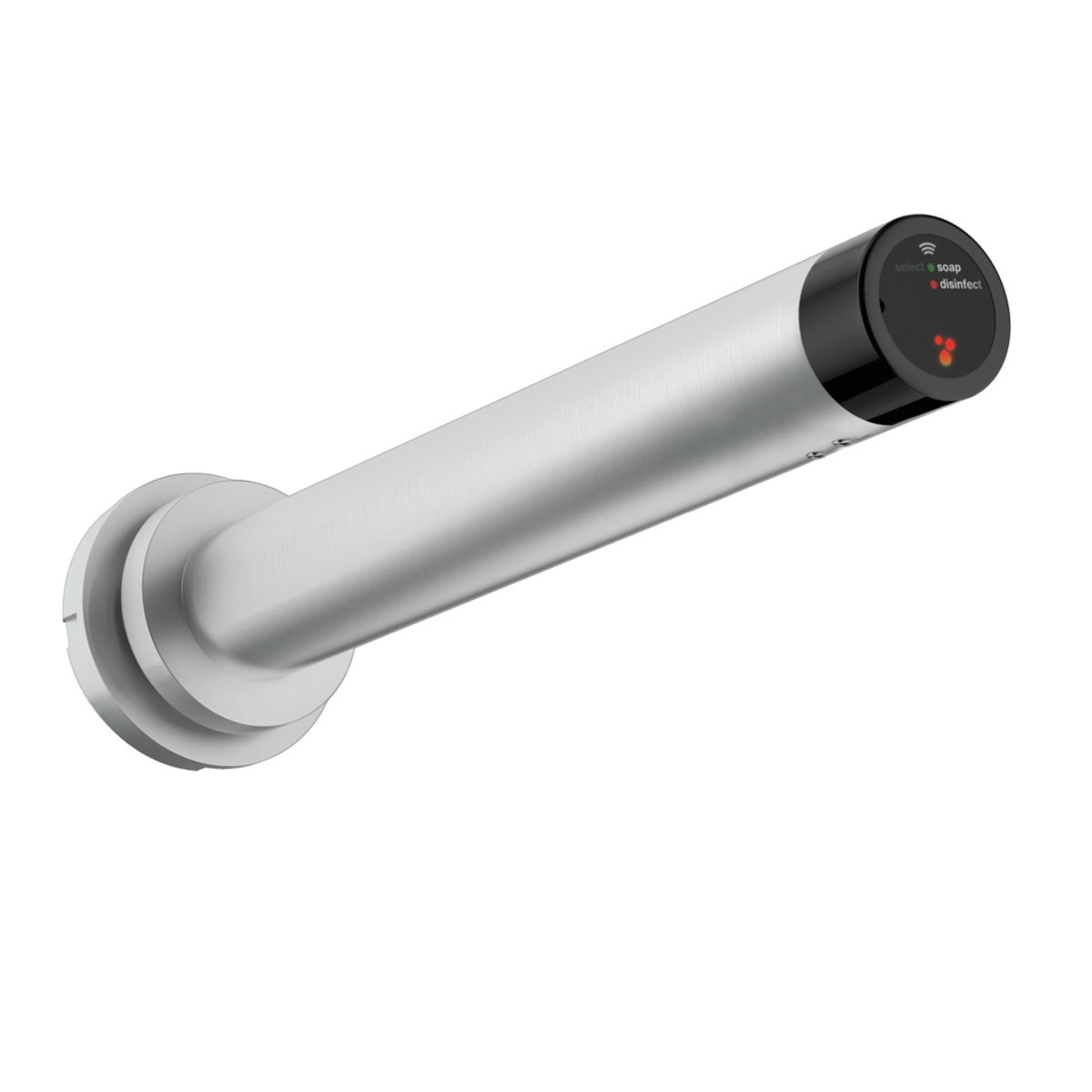

Untouchable SD Straight
High-quality touchless faucet system for wall mounting for soap and disinfectant
- Description
- Documents
- Technical Drawings
the untouchable™, touchless faucet system for soap and disinfectant, sensor-driven multifunctional straight faucet for wall mounting
| Angle valve connection: | G 3/8’’ |
|---|---|
| Brand: | the untouchable™ |
| Power supply: | 230V AC to 12V DC/1A power supply unit |
| Quantity / Pallet EU: | 64 |
| Product Type: | Multifunctional Touchless Faucet system |
| Housing: | Stainless steel 1.4404 (AISI 316L), brushed |
| Filling volume (ml): | 1000 ml |
| Material: | Stainless steel |
| Dosage quantity: | Disinfectant: 1.0 ml/stroke, Liquid soap: 1.5 ml/stroke |
| Filling good: | Disinfectant, Liquid soaps |
| Number of faucets: | 1 multifunctional touchless faucet |
| Control unit: | Plastic, wall mounting with 4 screws and wall plugs |
| Dispenser unit: | Aluminium, matte silver anodized, wall mounting with 3 screws and wall plugs |
| Operating pressure: | 0.3 - 7 bar (operation only with mains pressure, not with low pressure) |
| Flow rate: | ca. 7-20 liter/minute |
| Water temperature: | max. 70 °C |
| Power consumption: | Standby mode: 0.2 Watt; Water mode: 7.2 Watt |
| Compliancy: | DIN EN 55014, DIN EN 61000, DVGW, EMV, EN13959, EN60335-1, RoHS, TrinkwV2001 |
| Mounting: | Wall mounting with 3 screws and wall plugs |
| Cleaning: | manual wipe disinfection, not dishwashersafe, not autoclavable |
